NDT probes & scanners · European market
Ultrasonic, Phased Array and Eddysun probes — compatible with Olympus and other brands
SYNVOR NDT conventional and Phased Array probes, EDDYSUN electromagnetic probes and the R12 scanner for PAUT/TOFD. We help you select the right probe for your instrument and procedure, with technical support from Lisbon.
Multi-brand compatibility
Market-standard connectors and cables, so our probes work with the instruments you already use.
- ✓ Olympus / Evident OmniScan MX2, MX3 and SX
- ✓ Eintik and other PAUT/TOFD systems
- ✓ Conventional UT flaw detectors (Lemo 00, Lemo 1, BNC, Microdot)
- ✓ EDDYSUN line: SMART-8005, EEC-309, EPA-101, EMS-2003C
SYNVOR NDT ultrasonic probes
Angle beam

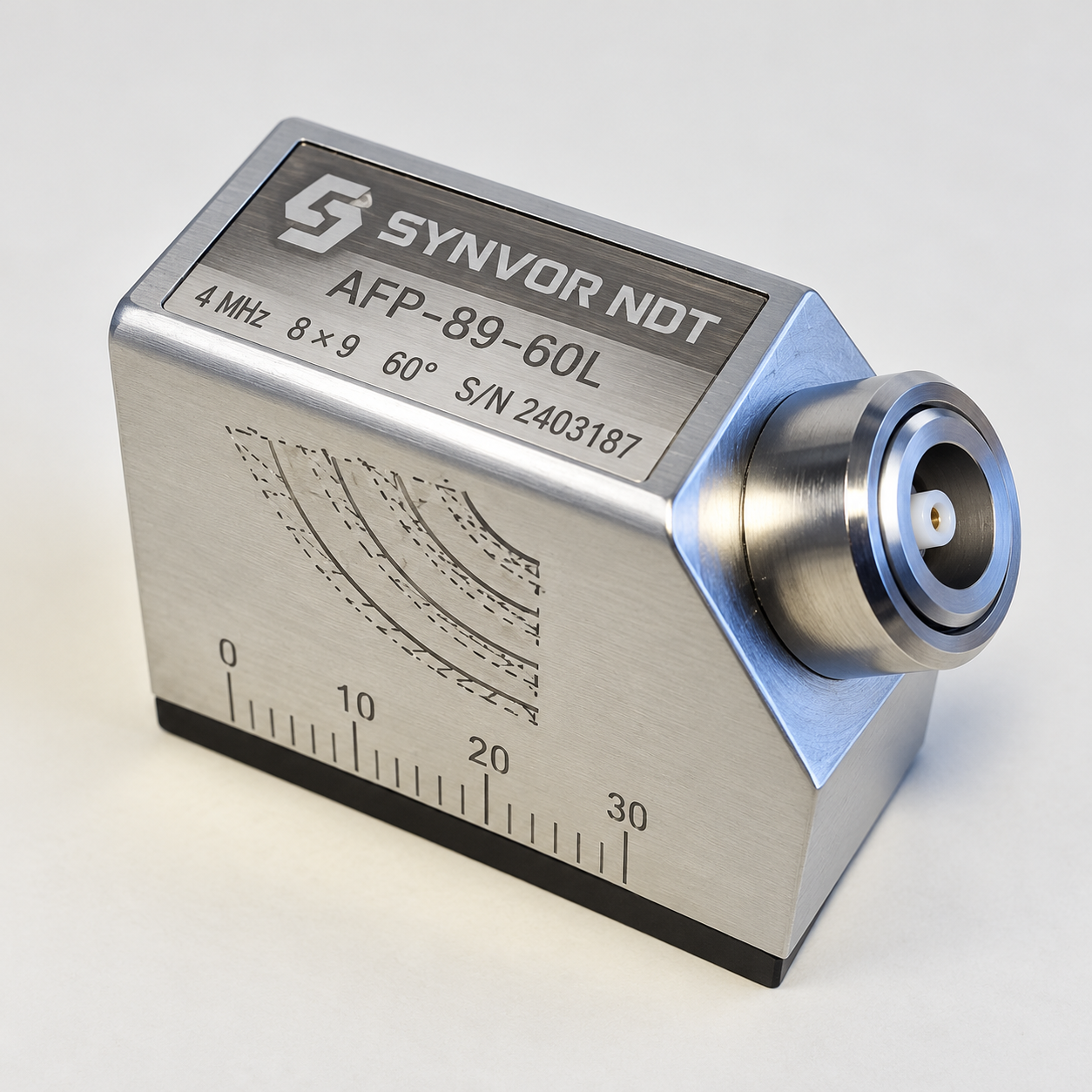

E.g. AFP-89-60L — 4 MHz, 8×9 mm, 60°. For welds and planar flaws.
Straight beam contact
Thickness, laminations and flaws parallel to the surface.
Dual element (TR)
Corrosion, remaining wall and thin materials.
Linear Phased Array
E.g. 7.5L64 — 64 elements, 7.5 MHz, for weld scanners.
TOFD
Weld flaw sizing with encoded scanning.
Immersion and high temperature
On request, depending on application and procedure.
EDDYSUN probes
Designed and manufactured by Eddysun (Xiamen, since 1993) for its instruments and standard interfaces, also custom-built.
Conventional ECT
Pencil, surface, weld and internal bobbin probes.
ECA / Array
Rigid and flexible arrays for surfaces and welds.
RFT
Ferromagnetic heat exchanger and boiler tubes.
MFL
Tank floors, plates and pipes.
MMM
Metal magnetic memory sensors for stress concentration.
Custom
PEEK/PPS/Ultem or stainless housings, shoes, footprints, reinforced cables.

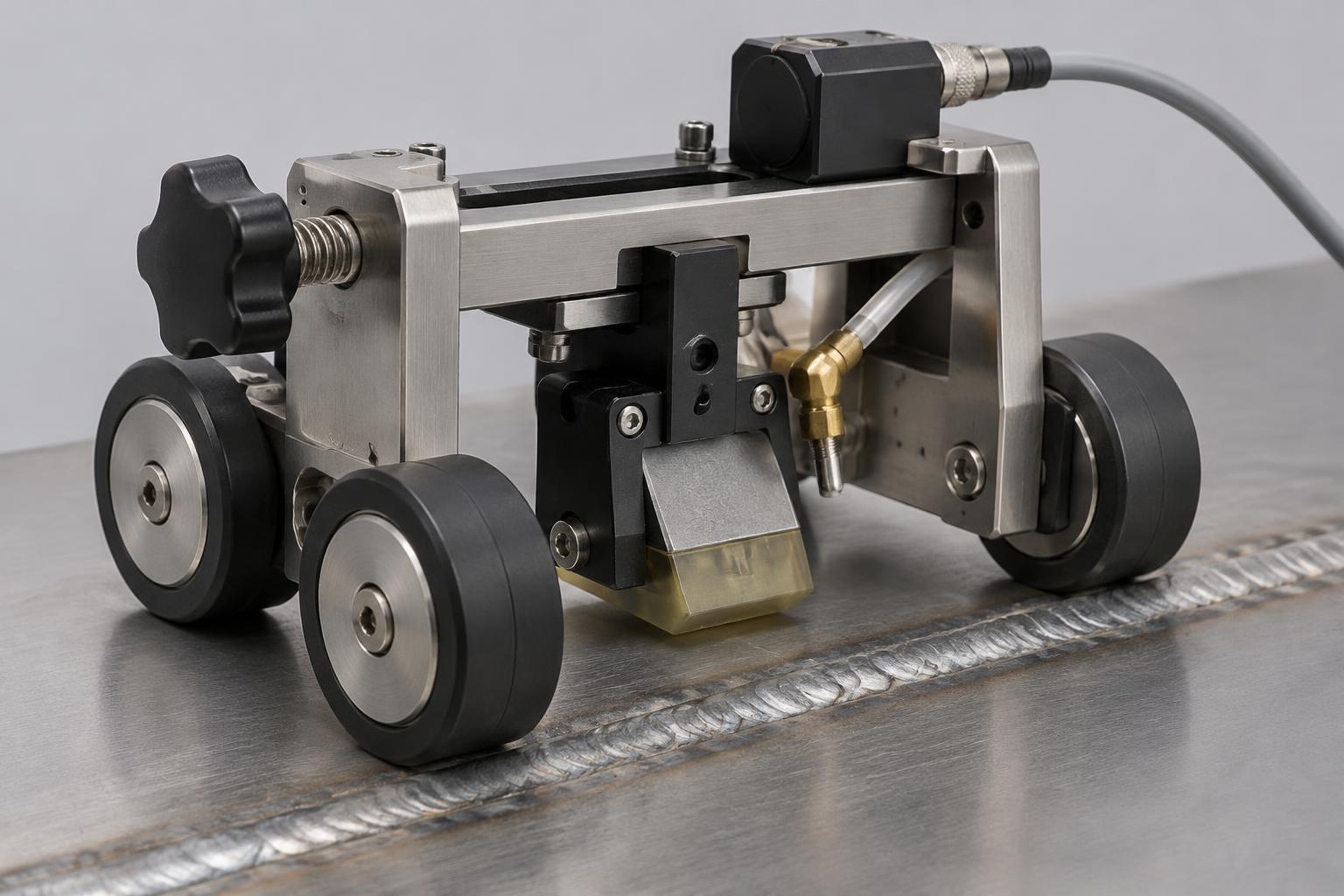

R12 scanner for PAUT / TOFD
Compact four-wheel weld scanner with integrated encoder and couplant irrigation.
- Reference
- R12 · ES00256
- Dimensions
- 129 × 104.5 × 62.5 mm
- Encoder
- E01, 5 m cable
- Direct connection
- OmniScan MX2 / MX3 / SX and Eintik
- Reference probe
- 7.5L64-1x7-MR12-F5-D3
- Accessories
- 250 foam pads
European standards references
- EN ISO 22232-2 — characterization of ultrasonic probes
- EN ISO 18563-2 — characterization of Phased Array probes
- EN ISO 5577 — ultrasonic testing vocabulary
- ASME BPVC Section V — examination methods
Inspection compliance depends on the qualified procedure, certified personnel and calibration of the complete system. We state the documentation available for each probe in the quote.
Need help selecting a probe?
Tell us the instrument, material, thickness and application. Initial reply within 1 business day.
